|Warranty:||5 Years||Nominal Capacity:||600mah To 150Ah|
|Anode Material:||Lithium Iron Phosphate|
Bluetooth 48v 150ah lithium ion battery,
ODM 150ah lithium ion battery,
XD lithium ion 150ah battery
Bluetooth Function ODM 48v 150ah Lithium Ion Battery Pack Deep Cycle

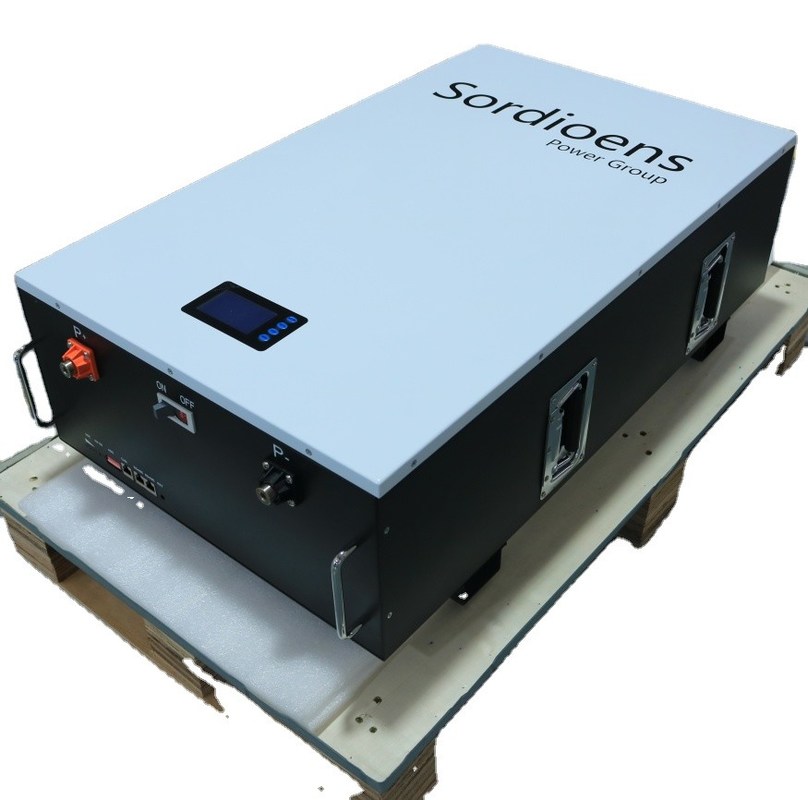

4U 48v 150Ah Rack-Mount Lithium ion Battery is a popular battery modular for battery energy storage. Inside with high quality prismatic LiFePo4 cells. The battery pack with BCU (Battery Central Unit) and BMU (Battery Management Unit), which could apply to Residential Energy Storage or Computer Data Rom stand-by power. At the same time, this system supports to expand capacity in the same voltage platform through multiple cabinets in parallel, applied to microgrid energy storage, photovoltaic energy storage. A customized battery management system (BMS) adopts real-time data acquisition, real-time data analysis. It has the monitoring and controlling functions, such as detection, early warning, alarm, automotive power-function and etc., as to ensure the safe and reliable operation of the system, detection, early warning, alarm, and automatic power-function monitoring and control to ensure safe and reliable operation of the system. ODM & OEM Design and service
Color:As picture or customization
Application:Communication, Traffic, IT, Financial, UPS, Solar, Radio, Electric Power, Data Centre, Aviation, Home, Electrocar, etc
Certification:CE / UL / ISO9001 / Rohs
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
|Item||48V 200AH lifepo4 battery pack (Customizable LCD)|
|Type||Lithium Iron Phosphate|
|Voltage Nominal||48V (Customized 3.2V 12V 24V 36V 48V 72V…720V)|
|Max Charge Current||75A Or Customized|
|Weight||82kg Or Customized|
|Dimension||442*520*320mm Or Customized|
|Operating Temperature Range||Charge:0°C to 45°C|
|Discharge: -20°C to 60℃|
|Life Cycle||More than 2000cycles @1.0C 100% DOD|
|Package||ABS/Metal Case Or Customized|
|Customized||Shell, Size, Weight, Color, Label, Current, Technology,etc can be customized|
1. Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short circuits;
2. Long cycle life, 100%DOD cycle for more than 2000 cycles remaining capacity more than 70%.
3. High energy density, low internal resistance;
4. Excellent safety performance, no explosion, no fire;
5. Good storage characteristics
6. Good high or cold temp performance
7. High capacity & light weight
8. Environmentally friendly
9. No memory effect
10. LCD display can be add.
Strict Quality Control: Cell test and battery pack test before producing & delivering.
As usual, we produced a batch of cells, and need do below test firstly.
a) capacity test,
b) high current discharge test,
c) low temperature test,
d) cycle performance test,
e) short circuit test,
f) overcharge test,
g) crush test,
h) impact test,
i) vibration test,
j) hot test.
1. Golf trolleys, Golf carts,
2. UPS backup
3. Fire alarm and security systems
4. Telecommunication equipment
5. Electric equipment and telemeter equipment
6. Light equipment, dc 12v led lights
7. Wireless lawn movers vacuum cleaner and washing machine
8. Toys and consumer electronics
9. Solar systems 12v
10. Portable power tools measuring and medical equipment
11. Portable video camera portable personal computer
12. Garden lighting
13. Sound systems
1. Make your LOGO battery by free.3. Make your required technology.
2. Meet your packaging request by free.
4. Customized Color, Size, Weight,etc.
Welcom to contact us get discount !
