Product Details:
|
| Application: | Energy Storage | Type: | Lithium-ion Battery Pack |
|---|---|---|---|
| Voltage: | 48V | Warranty: | 5 Years |
| Battery Type: | Lifepo4/lithium Battery | Discharge Current: | 100A |
| Highlight: | 5.12Kwh 48v Lifepo4 Battery,Silk battery Wall Mounted,Silk 48v rechargeable battery |
||
Deep Cycle 51 . 2V 48V 100AH Lifep04 5.12 kwh Solar Battery , ultra-safe Lithium Iron Phosphatechemistry offers high level of safety through the use of cylindrical cells in Lithium FerroPhosphate technology ( Lifepo4 or LFP ) , maintains higher voltage during discharge than leadacid , with the excellent temperature robustness ( 20'c up to + 60 C ) , compatible withtelecommunication , energy storage , EPS / UPS battery backup , and etc

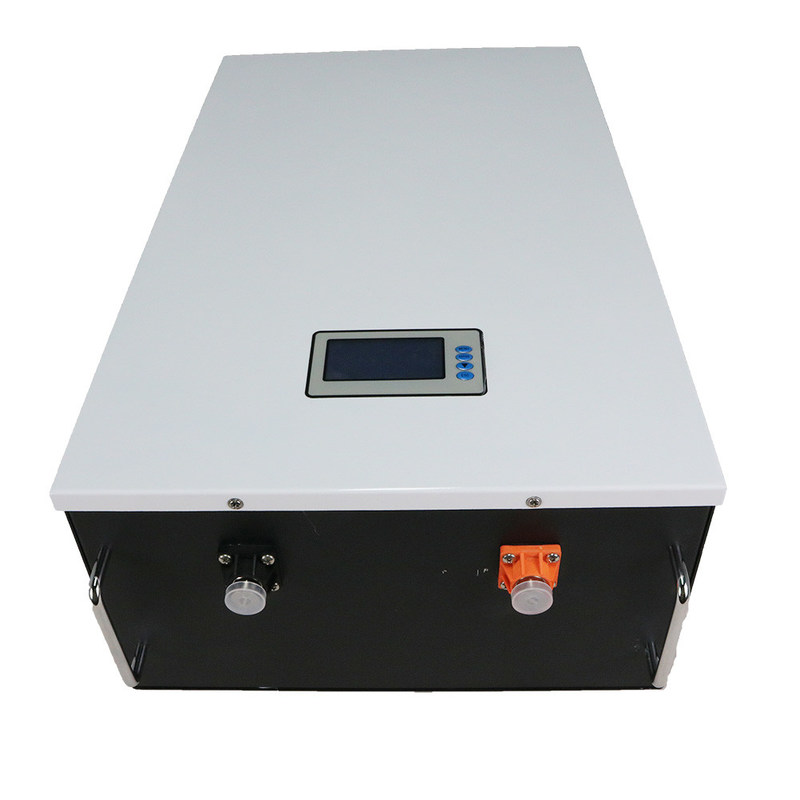

100ah 5.12 Kwh 48v Lifepo4 Battery Wall Mounted Rechargeable Silk Battery
Dimension: 620*370*205mm (Length*Width*Thickness)
Weight: 40KG
Max Charge Current:100A
Max continuous discharge current: 100A
Max power output: 5.12KWH
Communication port: On demand.
LED Screen: YES
Product Description
| Serial number | project | General parameters |
| 1 | Number of series | 16S |
| 2 | Rated voltage | 51.2V or 48V |
| 3 | End of discharge voltage | 43.2V or |
| 4 | Charging voltage | Recommend 56.4V (56V – 58.4V) |
| 5 | Internal resistance (battery pack) | ≤100mΩ |
| 6 | Self-discharge rate | ≤2%/month |
| 7 | range of working temperature (≤95%R.H.) |
0～65℃ charge 20～65℃ discharge |
| 8 | Storage temperature range (≤95%R.H.) |
-40～70℃ |
| 9 | Positive and negative lead way | Terminal 4P*1 Fence terminal*1 |
| 10 | Display screen | LED display, four physical buttons |
| 11 | Protective function | Overcharge, over discharge, short circuit, overload, over temperature, etc. |
| 12 | Shipment product charge | 50% power when delivery |
| 13 | Packing material | Carton or Wooden box |
| S/N | function name | Function setting | Cell voltage alarm | Settings Value | Reference setting range |
| Monomer over-voltage protection | Turn on | Over-voltage protection voltage | |||
| Cell under-voltage protection | Turn on | Under-voltage protection voltage | |||
| Battery over-voltage protection | Turn on | Over-voltage protection voltage | |||
| Battery under-voltage protection | Turn on | Under-voltage protection voltage | |||
| Cell high temperature protection | Turn on | Cell high temperature protection | ~90℃60℃-5~5℃7-20℃-40~-10℃8105A0A~110A |
Performance Curves
Packing & Shipping
Packing
Carton + Wooden + Pallet
Shipping
Express | By air | By sea
According to your requirments
Customers Feedback
Customers Projects and Application
Our Products Passed the certifications of CE / ISO9001 / ISO14001 / Rohs
Our Services
Warranty : 3- 5 years
OEM / ODM : Avaliable
MOQ : 10 piece
