|Features:||Long Cycle Life||Type:||LiFePO4|
|Product Name:||Lifepo4 Battery||Color:||Black Grey Or Custom|
XD Rechargeable Lifepo4 Battery,
Rechargeable lithium rv battery,
XD rv lithium battery pack
ompared with 12v Lithium battery connected in series for replacement of 48v AGM/ GEL/ Lead acid, We highly recommend a direct 48v lithium battery pack, which is more powerful and stable in performance.
If you are a golf cart dealer or fleet manager, to start offering your customers the best-in-class lithium golf cart battery by becoming a XD dealer. From no maintenance to faster charge times, lithium batteries have many advantages over lead-acid. XD Lithium batteries feature easier, smarter and safer to ensure your golf carts, and business, are running at maximum performance.
A lithium storage battery long life lithium battery is easier to charge in many respects than a lead-acid battery: lithium storage battery long life lithium battery charges as long as the charge voltage is strong enough to transport ions. Lithium-ion batteries don't mind if they aren't fully charged; in fact, if they aren't, they last longer. There is no sulphation, no equalization, the absorption time is irrelevant, the battery cannot be overcharged, and the BMS ensures that everything stays within reasonable limits.
|Serial number||project||General parameters|
|1||Number of series||16S|
|2||Rated voltage||51.2V or 48V|
|3||End of discharge voltage||43.2V or|
|4||Charging voltage||Recommend 56.4V (56V – 58.4V)|
|5||Internal resistance (battery pack)||≤100mΩ|
|7||range of working temperature
|8||Storage temperature range
|9||Positive and negative lead way||Terminal 4P*1 Fence terminal*1|
|10||Display screen||LED display, four physical buttons|
|11||Protective function||Overcharge, over discharge, short circuit, overload, over temperature, etc.|
|12||Shipment product charge||50% power when delivery|
|13||Packing material||Carton or Wooden box|
Rv lithium battery pack lithium storage batteries are easy to store, even for longer durations, due to their low self-discharge rate. A rv lithium battery pack, lithium storage battery can be stored for a year with no trouble; just make sure it is charged before doing so. A percentage of 50-60% is excellent, as this will provide the battery a long period before self-discharge gets the Voltage way too close to the critical threshold. If you need to store batteries for longer periods, be sure to simply disconnect all wires from them. That way there can not be any stray loads that slowly discharge the rv lithium battery pack lithium storage battery.
Battery Management System
|S/N||function name||Function setting||Cell voltage alarm||Settings Value||Reference setting range|
|1||Monomer over-voltage protection||Turn on||Over-voltage protection voltage||3750mV||3000~6000mV|
|2||Cell under-voltage protection||Turn on||Under-voltage protection voltage||2700mV||100~3200mV|
|3||Battery over-voltage protection||Turn on||Over-voltage protection voltage||57.6V||40.0V~60.0V|
|4||Battery under-voltage protection||Turn on||Under-voltage protection voltage||43.2V||30.0V~60.0V|
|5||Cell high temperature protection||Turn on||Cell high temperature protection||65℃||30℃~90℃|
|6||Charging low temperature protection||Turn on||Charging low temperature protection||0℃||-5~5℃|
|7||Discharge low temperature protection||Turn on||Discharge low temperature protection||-20℃||-40~-10℃|
|8||Overcurrent protection||Turn on||Overcurrent protection||105A||0A~110A|

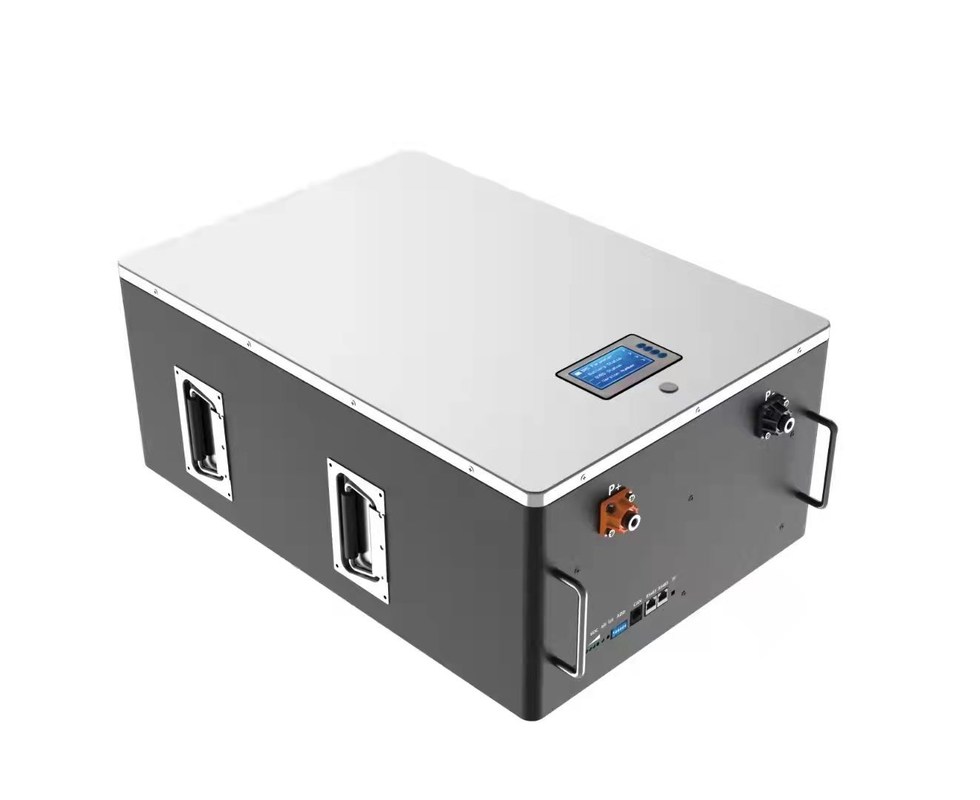

Our rv battery lithium ion is a lithium deep cycle battery with a capacity of 5.12KWH 48V. This rv battery lithium ion is a lithium ion rv battery. Long-life rv lithium battery pack is expected to replace lead-acid battery packs in solar systems and electric vehicles. The rv lithium battery pack is powerful, long-lasting, and has a long cycle life. In renewable energy applications, a rv lithium battery pack is used as a lithium storage battery. Most basic solar charge controllers can easily charge rv lithium battery pack. The voltages required are quite similar to those required by AGM batteries (a type of sealed lead-acid battery). The BMS of rv lithium battery pack also ensures that the battery cells receive the correct voltage, that they are not overcharged or overdischarged, that they are balanced, and that the cell temperature stays within acceptable ranges while being charged.
XD Battery is professional in lithium iron phosphate battery and lead acid battery, if you are looking for lifepo4 battery manufacturer and supplier, XD must be your best choice. We provide 12V, 24V, 48V lifepo4 battery with complete capacity, customized needs also can be accepted. Wholesale lifepo4 battery from XD.
