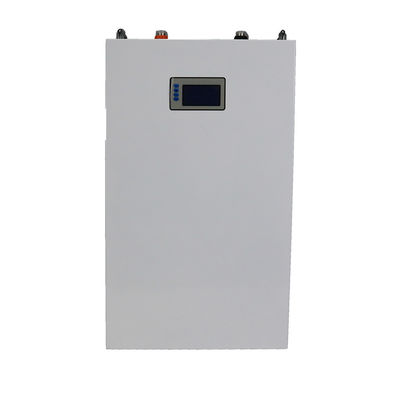

Lifepo4 Wall Mounted Battery 5.12KWH 48V 24 Volt Rechargeable Lithium Battery

I'm Online Chat Now

Lifepo4 Wall Mounted Battery 5.12KWH 48V 24 Volt Rechargeable Lithium Battery

Lifepo4 Wall Mounted Battery 5.12KWH 48V 24 Volt Rechargeable Lithium Battery
Lifepo4 Wall Mounted Battery 5.12KWH 48V 24 Volt Rechargeable Lithium Battery

Large Image :  Lifepo4 Wall Mounted Battery 5.12KWH 48V 24 Volt Rechargeable Lithium Battery

Product Details:
Place of Origin: Beijing, China
Brand Name: XD BATTERY
Certification: MSDS,UN38.3, UL1642, CE,IEC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Delivery Time: 2~4weeks for samples; 4~6weeks for mass production
Payment Terms: L/C; TT
Supply Ability: 450Mwh/year

Lifepo4 Wall Mounted Battery 5.12KWH 48V 24 Volt Rechargeable Lithium Battery

Description
Features: Long Cycle Life Name: Wall Mounted Battery
Type: LiFePO4 Size: Customized
Nominal Voltage: Customized Warranty: 5 Years
Application: UPS,solar System,HEV Oem/odm: Accepatable
High Light:

lifepo4 wall mounted battery 48V

,

wall mounted battery 5.12KWH

,

5.12KWH rechargeable lithium battery

A 48V 100ah lithium batteries is included in our 48V rechargeable lithium batteries. This rechargeable lithium iron phosphate (LiFePO4) battery is set to take the role of lead-acid battery packs in solar systems and electric cars. The 48v solar rechargeable lithium batteries are powerful, long-lasting, and have a high cycle life. In comparison to lead-acid batteries, 48V100 rechargeable lithium batteries can store more energy and charge more quickly.

In renewable energy applications, 48V100 rechargeable lithium batteries are used.

If you are looking for energy storage for on-grid or off-grid residential solar systems, this 48v rechargeable lithium batteries for solar system is a good choice. Deep-cycle Lithium Ion Solar Battery are a key component of off-grid solar power systems and are suitable for grid-connected or emergency backup power systems with or without solar energy. For renewable energy systems, the 48v battery bank solar system is compatible with many other leading brands of inverters and solar charge controllers.

Product Description



Parameter



Serial number project General parameters
1 Number of series 16S
2 Rated voltage 51.2V or 48V
3 End of discharge voltage 43.2V or
4 Charging voltage Recommend 56.4V (56V – 58.4V)
5 Internal resistance (battery pack) ≤100mΩ
6 Self-discharge rate ≤2%/month
7 range of working temperature
(≤95%R.H.)
0~65℃ charge
20~65℃ discharge
8 Storage temperature range
(≤95%R.H.)
-40~70℃
9 Positive and negative lead way Terminal 4P*1 Fence terminal*1
10 Display screen LED display, four physical buttons
11 Protective function Overcharge, over discharge, short circuit, overload, over temperature, etc.
12 Shipment product charge 50% power when delivery
13 Packing material Carton or Wooden box


Battery Management System



S/N function name Function setting Cell voltage alarm Settings Value Reference setting range
1 Monomer over-voltage protection Turn on Over-voltage protection voltage 3750mV 3000~6000mV
2 Cell under-voltage protection Turn on Under-voltage protection voltage 2700mV 100~3200mV
3 Battery over-voltage protection Turn on Over-voltage protection voltage 57.6V 40.0V~60.0V
4 Battery under-voltage protection Turn on Under-voltage protection voltage 43.2V 30.0V~60.0V
5 Cell high temperature protection Turn on Cell high temperature protection 65℃ 30℃~90℃
6 Charging low temperature protection Turn on Charging low temperature protection 0℃ -5~5℃
7 Discharge low temperature protection Turn on Discharge low temperature protection -20℃ -40~-10℃
8 Overcurrent protection Turn on Overcurrent protection 105A 0A~110A



Performance Curves


XD Battery is professional in lithium iron phosphate battery and lead acid battery, if you are looking for lifepo4 battery manufacturer and supplier, XD must be your best choice. We provide 12V, 24V, 48V lifepo4 battery with complete capacity, customized needs also can be accepted. Wholesale lifepo4 battery from XD.
