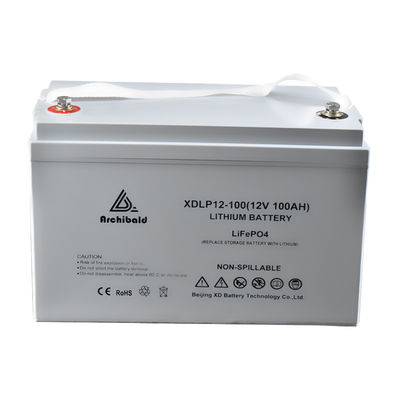

Product Details:
|
| High Light: | Motorhome 100AH 12v Lifepo4 Battery,UN38.3 12v Lifepo4 Battery,MSDS 12v lithium ion battery |
||
|---|---|---|---|
Impeccably Lightweight: Our LiFePO4 battery is only 1/3 of the weight of Lead Acid which makes it the disputable choice for RVs, Marine, and Off-Grid Applications when towing or mobility is in consideration.
Our battery module consists of multiple cells connected in a series and/or a parallel, encased in a mechanical structure. The system is modular in design, allowing for it to be easily switched to a different capacity and power as per your demands. The unit can be wall mounted, floor mounted, and server rack mounted.
Basic Electrical Specification
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 105 Ah |
| Energy | 1344 Wh |
| Resistance | ≤0.5mΩ |
| Efficiency | 99% |
| Self Discharge | ≤3% per month |
Charge Specification
| Recommended Charge Current | 25A - (Range: 0.2C-0.5C) |
| Maximum Charge Current | 100 A (1C) |
| Recommended Charge Voltage | 14.6 V |
| BMS Charge Voltage Cut-Off | 14.8 V (3.9 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 14.2 V (3.8 ±0.05 vpc) |
| Balancing Voltage | 13.62 V (3.6 ±0.025 vpc) |
Discharge Specification
| Maximum Continuous Discharge Current | 100A (150A BMS) |
| Peak Discharge Current | 250A(3-5s) |
| BMS Discharge Current Cut-Off | 450A(300ms) |
| Recommended Low Voltage Disconnect | 10.5 V |
| BMS Discharge Voltage Cut-Off | 9.4 V (2.0 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage | 10.2 V (2.3 ±0.1 vpc) |
| Short Circuit Protection | 200-300 µs |
Temperature Specification
| Discharge Temperature | -4 to 130 ºF (-20 to 55 ºC) |
| Charge Temperature | 32 to 130 ºF (0 to 55 ºC) |
| Storage Temperature - 1 month | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature - 1 year | 32 to 95 ºF (0 to 35 ºC) |
| BMS High Temperature Cut-Off | 176 ºF (80 ºC) |
| Reconnect Temperature | 122 ºF (50 ºC) |
| BMS Low Temperature Cut-Off (Charging) | 32 ºF (0 ºC) |
| Reconnect Temperature (Charging) | 41 ºF (5 ºC) |
BMS Overview
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 32 ºF (0 ºC) / 41 ºF (5 ºC) |
| Short Circuit Protection | yes |
Mechanical Specifications
| Dimensions (L x W x H) | 10.25 x 6.7 x 8.25” (260 x 168 x 209 mm) |
| Weight | 24.25lbs (11 kg) |
| Terminal Type | M8 (20mm) |
| Terminal Torque | 10 ~12 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Cell Type - Chemistry | Prismatic - LiFePO4 |
Certifications
| MSDS Datasheet | MSDS |
| UN38.3 | DG61 |
| CE Certification | EN61000-6-1, EN61000-6-3 |
| ROHS Certification | ROHS |
| FCC Certification | Part15B |
| IEC62619 documentation or 49 CFR | IEC62619 / 49 CFR 173.185 |
| IMDG Code | UN3840 / Class 9 |
Cells / Internal Arrangment
| Brand | EVE Energy Co., Ltd |
| Product | Prismatic Aluminum-clad LFP Battery |
| Model | LF105 |
| Specification | 3.2 V / 105 Ah |
| Cell / BMS Impact Protection | Large Foam Inserts as shown |
| Cable Size | All cable sizes capable of meeting all specs set forth by BMS |
| Cable Color | Color coded (Red/Black/Blue) |
| Low Temperature Probe | Probe placed on cells / wire attached to BMS |
BMS
| Model | 3SABM0-H02 (LFP-4S-150A) |
| Maximum Continous Discharge Current | 150A (BMS support Max continous current 150A ) |
| Cell Balancing | 3.4V (13.6V) |
| Over Current Protection | yes |
| Under Voltage Protection | yes |
| Over Voltage Protection | yes |
| Overload Protection | yes |
| High Temperature Protection | yes |
| Low Temperature Protection | 0C Disconnect, 5C Reconnect |
| Short Circuit Protection | yes |
Battery Case
| Dimensions (L x W x H) | 10.25 x 6.7 x 8.25” (260 x 168 x 209 mm) |
| Terminal Type | M8 (20mm) |
| Terminal Torque | 10 ~12 N-m |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| Front Graphics Label | 160 x 230 mm |
Packaging
| Dimensions (L x W x H) | 12.21 x 8.66 x 10.43" (310 x 220 x 265mm) |
| Weight | 29.56 lbs (12.5 kg) |
Packing
Carton + Wooden + Pallet
Shipping
Express | By air | By sea
