Product Details:
|
| High Light: | 5.12 KWH 48v Lifepo4 Battery,48v Lifepo4 Battery Wall Mounted,5.12 KWH xd battery |
||
|---|---|---|---|

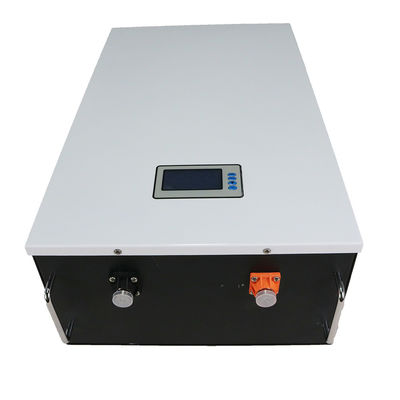

5.12KWH Power Wall 48v Lifepo4 Battery Wall Mounted Xd Battery
We have rich professional experience and diversified overall solutions in related fields. In the field of energy storage, we are committed to providing customers with perfect smart power energy solutions, providing customers with stable and reliable lithium battery products and charging and discharging equipment.
Item:51.2V 100AH lifepo4 battery module, Wall mountable, Power wall.
Dimension: 620*370*205mm (Length*Width*Thickness)
Weight: 40KG
Max Charge Current:100A
Max continuous discharge current: 100A
Max power output: 5.12KWH
Communication port: On demand.
LED Screen: YES
Product Description
| Serial number | project | General parameters |
| 1 | Number of series | 16S |
| 2 | Rated voltage | 51.2V or 48V |
| 3 | End of discharge voltage | 43.2V or |
| 4 | Charging voltage | Recommend 56.4V (56V – 58.4V) |
| 5 | Internal resistance (battery pack) | ≤100mΩ |
| 6 | Self-discharge rate | ≤2%/month |
| 7 | range of working temperature (≤95%R.H.) |
0～65℃ charge 20～65℃ discharge |
| 8 | Storage temperature range (≤95%R.H.) |
-40～70℃ |
| 9 | Positive and negative lead way | Terminal 4P*1 Fence terminal*1 |
| 10 | Display screen | LED display, four physical buttons |
| 11 | Protective function | Overcharge, over discharge, short circuit, overload, over temperature, etc. |
| 12 | Shipment product charge | 50% power when delivery |
| 13 | Packing material | Carton or Wooden box |
| S/N | function name | Function setting | Cell voltage alarm | Settings Value | Reference setting range |
| Monomer over-voltage protection | Turn on | Over-voltage protection voltage | |||
| Cell under-voltage protection | Turn on | Under-voltage protection voltage | |||
| Battery over-voltage protection | Turn on | Over-voltage protection voltage | |||
| Battery under-voltage protection | Turn on | Under-voltage protection voltage | |||
| Cell high temperature protection | Turn on | Cell high temperature protection | ~90℃60℃-5~5℃7-20℃-40~-10℃8105A0A~110A |
Performance Curves
Packing & Shipping
Packing
Carton + Wooden + Pallet
Shipping
Express | By air | By sea
According to your requirments
Customers Feedback
Customers Projects and Application
Our Products Passed the certifications of CE / ISO9001 / ISO14001 / Rohs
Our Services
Warranty : 3- 5 years
OEM / ODM : Avaliable
MOQ : 10 piece
