Product Details:
|
| Features: | Deep Cycle Battery 12V | Product Name: | 12v Lifepo4 Lithium Battery |
|---|---|---|---|
| Size: | 330*170*220mm | Application: | UPS,Solar,Car, Equipment, Light,etc., Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Sto |
| Color: | Black White Or Custom | Capacity: | 100AH |
| Warranty: | 3 Years, 3years | OEM/ODM: | Avaiable |
| Shell Material: | ABS / ABS V0 (optional) | Type: | LiFePO4 |
| Port: | Beijing/Shenzhen/Other | ||
| High Light: | XD Lithium Ion RV Battery,Lithium Ion RV Battery 12V 100AH,Lithium Iron Phosphate Battery Storage |
||

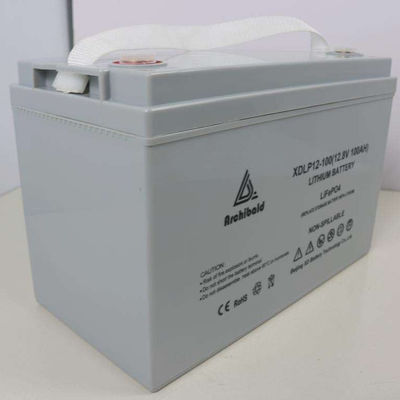

New Design Deep Cycle Lifepo4 12V 100AH Lithium Iron Phosphate Battery Storage
Long-Lasting Option: Unlike lead-acid batteries, this batteries deep cycle has an extended lifespan of up to 3000-5000+ cycles. To optimize the deep cycle battery 12v marine, make sure to only use it for parallel connection and not series connection.
Enhanced Protection: This 12v LiFePO4 battery features built-in Battery Management System (BMS) with charge, discharge, over-temp, over-current, and short circuit protection. Additionally, the 12v rechargeable lithium battery is IP67 waterproof, UL-94- V0 fireproof housing, as well as CE and UN 38.3 certified. The LiFePO4 cells are UL certified.
Lightweight and Practical: The lithium car battery 12 volt is superior compared to the classic lead-acid batteries not only in capacity, but also in weight. The battery is compact (group size 48), and has a 110Ah capacity at only 23lbs, which makes it ideal for traveling, marine, and off-grid applications.
ATTENTION:
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
|
Item |
12v 100ah lifepo4 battery pack |
|
Brand |
Archibald |
|
Type |
Lithium Iron Phosphate |
|
Part No.: |
LiFePO4 battery |
|
Voltage Nominal |
12.8V (Customized 3.2V 12V 24V 36V 48V...720V) |
|
Capacity Nominal |
100AH |
|
Norrmal Charge Current |
100A Or Customized |
|
Weight |
10kg 100A Or Customized |
|
Dimension |
330*170*220mm Or Customized |
|
Operating Temperature Range |
Charge:0 to +60°C |
|
|
Discharge: -20 to +60℃ |
|
Life Cycle |
More than 3000times (100%DOD) |
|
Package |
ABS/Metal Case Or Customized |
|
Customized |
Shell, Size, Weight, Color, Label, Current, Bluetooth, LED Display, Technology,etc can be customized |
Strict Quality Control: Cell test and battery pack test before producing & delivering.
As usual, we produced a batch of cells, and need do below test firstly.
a) capacity test,
b) high current discharge test,
c) low temperature test,
d) cycle performance test,
e) short circuit test,
f) overcharge test,
g) crush test,
h) impact test,
i) vibration test,
j) hot test.
Applications:
1. Golf trolleys, Golf carts,
2. UPS backup
3. Fire alarm and security systems
4. Telecommunication equipment
5. Electric equipment and telemeter equipment
6. Light equipment, dc 12v led lights
7. Wireless lawn movers vacuum cleaner and washing machine
8. Toys and consumer electronics
9. Solar systems 12v
10.Portable power tools measuring and medical equipment
11.Portable video camera portable personal computer
12.Garden lighting
13.Sound systems
