Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley

China Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley supplier
Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley supplier Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley supplier Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley supplier

Large Image :  Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley

Product Details:

Place of Origin: China
Brand Name: Topband
Certification: CE, MSDS, UN38.3
Model Number: TB12100F-M110A

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: standard export carton
Delivery Time: 2~4weeks for samples; 4~6weeks for mass production
Payment Terms: L/C, T/T
Supply Ability: 450Mwh/year
Contact Now
Detailed Product Description
Nominal Voltage: 12.8V Typical Capacity: 100Ah
Max Charge Current:: 80A Charge Temperature: 0℃ - 45℃ ( 32℉ - 113℉ )
Discharge Temperature:: -20℃ - 60℃ (-4℉ - 140℉ ) Cycles Life@ 100% DOD:: ≥2000
Weight:: 12.2Kg Dimension:: 318 X 165 X 215 Mm
Material: LiFePO4 Certification: CE/UN38.3/MSDS
Warranty: 2 Years Size: Prismatic
Application: Gofl Trolley, Golf Cart, UPS, Solar System

Prismatic 12V 100Ah Lifepo4 Battery Pack For Golf Trolley/Cart

1. General Information

This specification defines the performance of rechargeable LiFePO4 battery pack TB12100F-M110A manufactured by Shenzhen Topband Battery Co., Ltd, describes the type, performance, technical characteristics, warning and caution of the battery pack.


2. Specification



NO Items Description
Normal specification
1 Nominal Voltage 12.8V
2 Normal Capacity 100Ah
3 Internal Resistance ≤20mΩ
Standard Charge
4 Battery operation temperature range @charging 0~45℃
5 Normal charge voltage 14.6±0.1V
6 Recommended float charge voltage(for Standby use) 13.9±0.1V
7 Allowed MAX charge current 80A@Battery initial Temp 25±5℃
8 Recommended charge current ≤60A
Standard discharge
9 Battery operation temperature range @discharging -20~60℃
10 Output Voltage Range 8.0~14.6V
11 Allowed discharge current 100A withstand 30min @Battery initial Temp 25±5℃
12 Pulse discharge current 350A withstand 3s
13 Discharge Cut-off voltage 8.0V
Mechanical Characteristics
14 Dimension Length 318mm
Width 165mm
Height 215mm
15 Weight Approx. 12.2Kg
Storage
16 Storage Temperature & Humidity Range Short: within one month -20~35℃, 45~75%RH
Long term: above one month -10~30℃, 45~75%RH
17 Self-discharge rate Residual capacity ≤3% per month; ≤15% per year
Reversible capacity ≤1.5%per month; ≤8% per year




 3. Electrical Characteristics & Test Condition

Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.



NO Items Criterion Condition
1 Internal Impedance ≤20mΩ Test the internal resistance of 50% SOC battery pack with 1 kHz AC internal resistance test instrument.
2 Capacity ≥100Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
3 Short circuit protection / Not allowed.
4 MAX charge Current 80A Charging with this current for more than 0.5h and the added temperature of battery pack less than 20℃.
5 MAX discharge Current 100A Discharging with this current for more than 0.5h and the added temperature of battery pack less than 35℃.
6





Cycle life (DOD%100)

≥2000cycle Discharge with the current of 0.5C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
7



Discharge Temperature

Characteristics

-20℃ ≥70% At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
0℃ ≥80%
25℃ 100%
55℃ ≥95%
8 Charge Retention ability remain capacity≥90% Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.

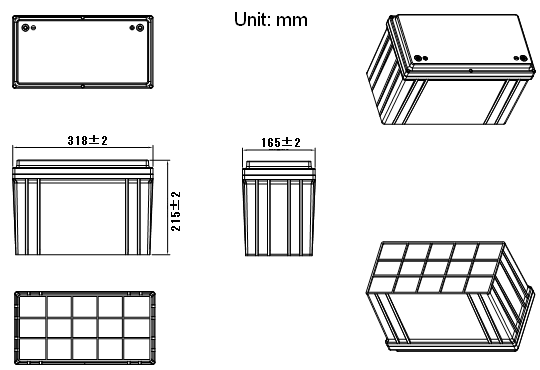

 4. Dimensional Drawing

Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley






  5. Storage & Transportation

* Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.

* Battery should be stayed in the ware house -20℃~35℃ where it’s dry, clean, shade, and well-ventilated.

* The battery should be stored in 50% SOC during transportation.

* The battery need to be charged every 6 months if out of use

* Keep the battery against dropping, turning over and serious stacking during loading.


6. Warning & Tips

Please read and follow the specification and caution remarks on battery surface before use the battery. Improper use may cause heat, fire, rupture, damage or capacity deterioration of the battery. Shenzhen Topband Battery Co., Ltd. Describes is not responsible for any accidents caused by the usage without following our specification.


7. Golf Trolley / Cart Applications



Prismatic 12V 100Ah Golf Cart Batteries Lifepo4 Material Pack For Golf Trolley
