Product Details:
Place of Origin: Beijing, China
Brand Name: XD BATTERY
Certification: MSDS,UN38.3, UL1642, CE,IEC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Delivery Time: 2~4weeks for samples; 4~6weeks for mass production
Payment Terms: L/C; TT
Supply Ability: 450Mwh/year

Data Room Ess Battery Storage LiFePO4 200A 384v Xd Batteries

Description
High Light:

Data Room ess battery storage

,

ess battery storage 200A 384v

,

200A 384v xd batteries

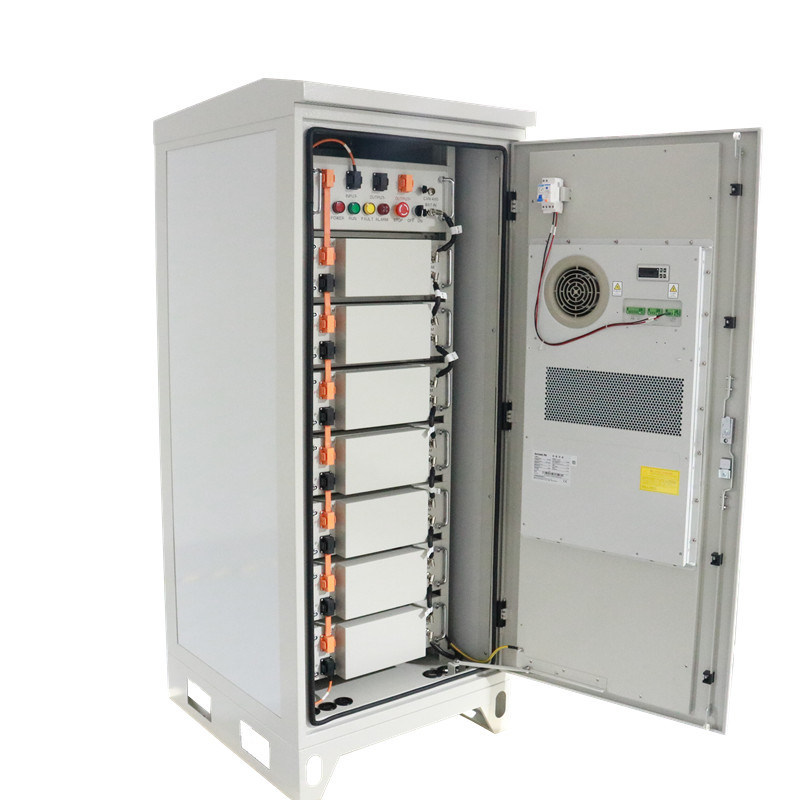

Data Room Ess Battery Storage LiFePO4 200A 384v Xd Batteries

For commercial and industrial users, previously implement solar energy storage by saving electricity bills and encouraging the use of clean energy, now it is a greater desire to increase resilience and be able to live normally in response to extreme weather disasters. For larger power solar system- and grid-side projects, it is desirable to select suppliers who can consistently deliver solid products.Our company have produce the lithium battery energy storage for more than 10years, earn lots of good evaluation from the customer, you will feel very comfortable to choose us.


384v Battery FEATURES

XD is a leading Powerwall Home Battery Manufacturer in China for over 16years, We focus on lithium iron phosphate battery, known as lifepo4 battery, which is the longest lifecycles and safest chemistry of all kinds of lithium battery. Our Whole House Battery Backup reach 6000cycles at 100%DOD. We offer very good.

4U rack-mounted design With smart BMS system Built-in cells equalizer Max 200A discharge current Flexible expansion, easy installation Top brand cells like CATL and BYD Long lifespan(5+ years ) Real-time monitor High density, small size, and weight Superior safety and reliability All-around protection CAN/RS485/RS232 communication optional Compatible with solar inverter and energy system

Storage solar system, UPS power bank, Inverter power bank, Railway power bank, Telecom munication power system, Medical electronics, Commercial finance,Security communications, Transportation logistics and so on

Technical Parameter

MODEL
100KWh
200KWh
300KWh
400KWh
500KWh
Battery Type
LiFePO4
Normal Battery Voltage(Vdc)
384Vdc
Normal Capacity (25℃ 0.2C)
100KWh
200KWh
300KWh
400KWh
500KWh
Operation Voltge range (Vdc)
336.0~438.0V
Max Continuous Discharge Current
200A
200A
200A
400A
400A
Max Pulse Discharge Current(A)
300A 30Sec.
300A 30Sec.
300A 30Sec.
600A 30Sec.
600A 30Sec.
Max Continuous Charge Current
135A
200A
200A
400A
400A
Cycle life (25℃, 0.2C)
≧3000 Cycles (for 3 years warranty, 5-8 years life design)
Cell Equalizer Current(A)
1~5A Max.
Terminal
Double M6
Storage temperature
0℃~30℃
IP degree
IP 20
Storage duration
6 months at 25℃
Display
7 inch touchscreen display
Communication
CAN/RS485/RS232 (Optional)
Built in BMS Control System
1pcs*4U BMS Control System Built Inside
2pcs*4U BMS Control System inside
MPPT Solar Charger Optional
384V-60A MPPT Rack Module , Size:440*475*150mm
PROTECTION
Protection
Overcharge protection,Overdischarge protection,Overcurrent protection,Shortcircuit protection,Overtemperature protection
AMBIENT
working Temperature
-10℃~+50℃
Humidity
0~95% ( no condensation)
Sea Level(m)
≤1500
DIMENSION
L×W×H (products size)
588*570*1950*3set
588*570*1950*6set
588*570*1950*9set
588*570*1950*12set
588*570*1950*15set
L×W×H (package size)
703*685*2135*3set
703*685*2135*6set
703*685*2135*9set
703*685*2135*12set
703*685*2135*15set
Net Weight (N.W. Kgs)
1350Kg
2700Kg
4050Kg
5400Kg
6750Kg
Gross Weight (G.W Kgs)
1425Kg
2850Kg
4275Kg
5700Kg
7125Kg
