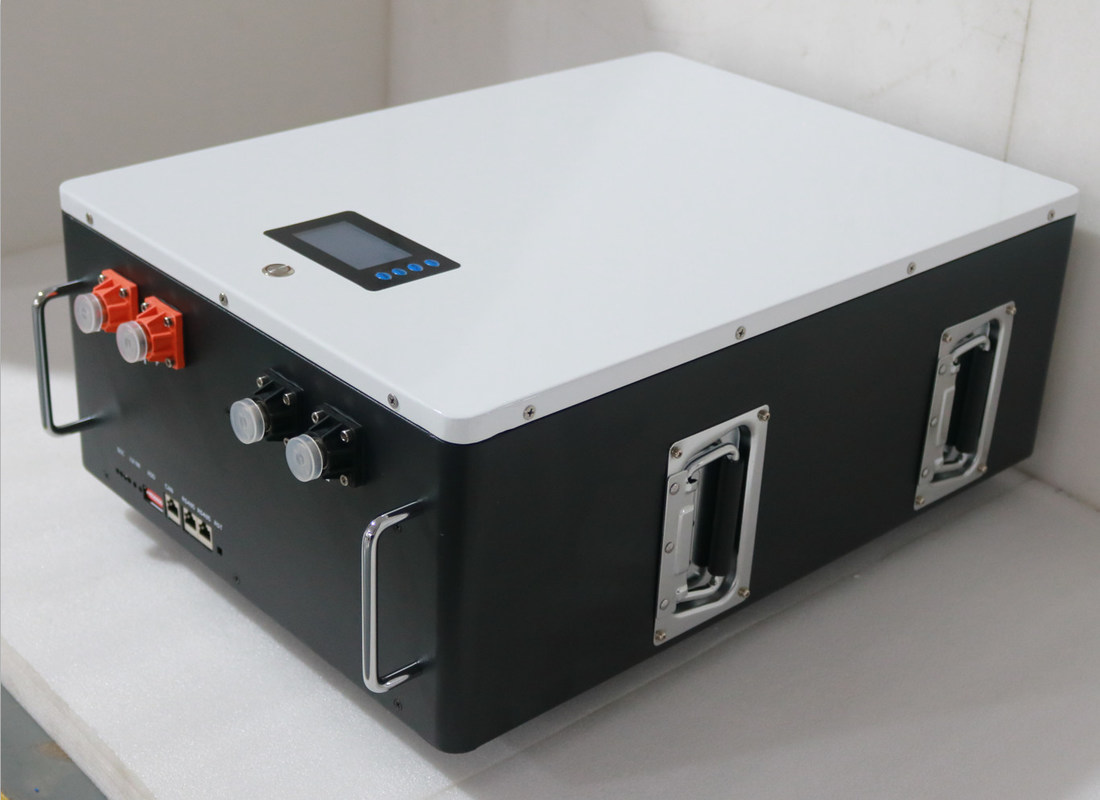

Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY

Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY
Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY

Large Image :  Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY

Product Details:
Place of Origin: Beijing, China
Brand Name: XD BATTERY
Certification: MSDS,UN38.3, UL1642, CE,IEC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Delivery Time: 2~4weeks for samples; 4~6weeks for mass production
Payment Terms: L/C; TT
Supply Ability: 450Mwh/year

Long Cycle 5.12KWH Lifepo4 48v 100ah Battery 200ah XD BATTERY

Description
Features: Long Cycle Life Type: LiFePO4
Warranty: 5 Years Battery Type: 12v 200ah Lifepo4 Battery
Oem/odm: Avaiable Rechargeable: Yes
Shell Material: ABS / ABS V0 (optional)
High Light:

5.12 KWH lifepo4 48v 100ah battery

,

XD 48v lifepo4 battery 200ah

,

5.12KWH lifepo4 48v 200ah

Features

• More than 8000 Cycles

• Battery modules available for parallel and series for higher voltage and capacity

• BMS Passive cell balance funciton

• IP66, IP67, water proof, dust proof, Temperature monitoring

• Customization for Size and Discharge and charge rate

• Free of Maintenance, contains no poisonous material

• No leakage, no hazardous chemistry

• Quick delivery

• Lighter in weight, smaller in size to save space.

• Powerfull to increase robust operation for your marine boat or RV

• Fast charging and high power discharge rate available

• No need to add water nor worry about maintenance.


Product Description

Our rv battery lithium ion is a lithium deep cycle battery with a capacity of 5.12KWH 48V. This rv battery lithium ion is a lithium ion rv battery. Long-life rv lithium battery pack is expected to replace lead-acid battery packs in solar systems and electric vehicles. The rv lithium battery pack is powerful, long-lasting, and has a long cycle life. In renewable energy applications, a rv lithium battery pack is used as a lithium storage battery. Most basic solar charge controllers can easily charge rv lithium battery pack. The voltages required are quite similar to those required by AGM batteries (a type of sealed lead-acid battery). The BMS of rv lithium battery pack also ensures that the battery cells receive the correct voltage, that they are not overcharged or overdischarged, that they are balanced, and that the cell temperature stays within acceptable ranges while being charged.



A lithium storage battery long life lithium battery is easier to charge in many respects than a lead-acid battery: lithium storage battery long life lithium battery charges as long as the charge voltage is strong enough to transport ions. Lithium-ion batteries don't mind if they aren't fully charged; in fact, if they aren't, they last longer. There is no sulphation, no equalization, the absorption time is irrelevant, the battery cannot be overcharged, and the BMS ensures that everything stays within reasonable limits.




Parameter
Serial number project General parameters
1 Number of series 16S
2 Rated voltage 51.2V or 48V
3 End of discharge voltage 43.2V or
4 Charging voltage Recommend 56.4V (56V – 58.4V)
5 Internal resistance (battery pack) ≤100mΩ
6 Self-discharge rate ≤2%/month
7 range of working temperature
(≤95%R.H.)
0~65℃ charge
20~65℃ discharge
8 Storage temperature range
(≤95%R.H.)
-40~70℃
9 Positive and negative lead way Terminal 4P*1 Fence terminal*1
10 Display screen LED display, four physical buttons
11 Protective function Overcharge, over discharge, short circuit, overload, over temperature, etc.
12 Shipment product charge 50% power when delivery
13 Packing material Carton or Wooden box



Rv lithium battery pack lithium storage batteries are easy to store, even for longer durations, due to their low self-discharge rate. A rv lithium battery pack, lithium storage battery can be stored for a year with no trouble; just make sure it is charged before doing so. A percentage of 50-60% is excellent, as this will provide the battery a long period before self-discharge gets the Voltage way too close to the critical threshold. If you need to store batteries for longer periods, be sure to simply disconnect all wires from them. That way there can not be any stray loads that slowly discharge the rv lithium battery pack lithium storage battery.

Battery Management System

S/N function name Function setting Cell voltage alarm Settings Value Reference setting range
1 Monomer over-voltage protection Turn on Over-voltage protection voltage 3750mV 3000~6000mV
2 Cell under-voltage protection Turn on Under-voltage protection voltage 2700mV 100~3200mV
3 Battery over-voltage protection Turn on Over-voltage protection voltage 57.6V 40.0V~60.0V
4 Battery under-voltage protection Turn on Under-voltage protection voltage 43.2V 30.0V~60.0V
5 Cell high temperature protection Turn on Cell high temperature protection 65℃ 30℃~90℃
6 Charging low temperature protection Turn on Charging low temperature protection 0℃ -5~5℃
7 Discharge low temperature protection Turn on Discharge low temperature protection -20℃ -40~-10℃
8 Overcurrent protection Turn on Overcurrent protection 105A 0A~110A



Performance Curves
XD Battery is professional in lithium iron phosphate battery and lead acid battery, if you are looking for lifepo4 battery manufacturer and supplier, XD must be your best choice. We provide 12V, 24V, 48V lifepo4 battery with complete capacity, customized needs also can be accepted. Wholesale lifepo4 battery from XD.
